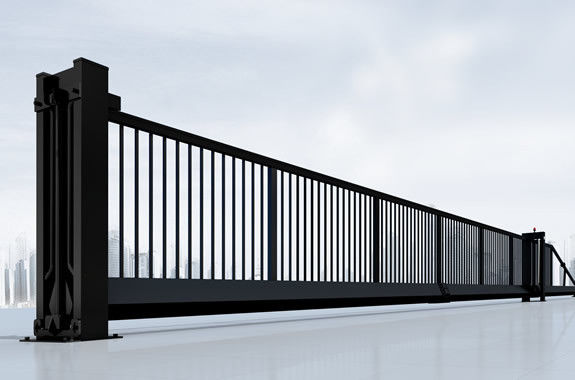

Name: Industrial Galvanized Zinc Wireless Automatic Sliding Gates Entrance Door
Brand: Shenzhen GSP Greenhouse Spare Parts Co.,Ltd
SKU: P709-H
Price: Negotiable USD
Availability: InStock

Home Products Automatic Sliding Door Motor

Industrial Galvanized Zinc Wireless Automatic Sliding Gates Entrance Door

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Certification:	CE
Model Number:	P709-H

Payment & Shipping Terms:

Minimum Order Quantity:	L=4m * H=1.5m
Packaging Details:	Plywood + Iron Rack
Delivery Time:	10 Working Days
Payment Terms:	TT With 50% Deposit, 50% Payable Upon Goods Dispatch
Supply Ability:	20.000m / month

Contact Now

Detailed Product Description

Highlight:

Automatic Slide Gates

Motorised Sliding Gates

Industrial Heavy Duty Cantilever Gates , Galvanized Zinc Automatic Sliding Gate

Features:

CE Certified.
EMO Button (Emergency Stop Button).
Trackless Operation.
Industrial Heavy Duty Usage
Galvanized Zinc
Wireless Remote Control (433MHz).
Powder Coating
Dispatch in Modules Form (Transportation Friendly).
Smart Power Outage Clutch.
Anti- Collision IR Sensor.
Anti- Climb Photo Cell.
Max Length Is 30m.

Specifications:

Operating Voltage	220 VAC ±10% (50Hz ~ 60Hz)
Operating Temperature	˗ 25˚C ~ + 75˚C
Environmental Humidity	≤ 90%
Operating Speed	16.7m/min

Motor Power Rating	370W ~ 550W
Motor RPM	1400r/min
IP Rating	IP44
Insulation Grade	F
Motor Output Torque	1.6 N.m
Current (A)	15A
Speed Reduction Ratio	30 to 1
Wireless Remote Distance	50m

Parts	Material	Specsification
Parts	Material	mm
Main Slide Bar	Q235 Galvanized Zinc	330*300
Upper Beam	Q195 Galvanized Zinc	7070T4
Gate Frame	Q195 Galvanized Zinc	8060T4
Upright Post	6063-T5	180100T3
Control Box	Cold-Rolled Plate	280182T2
Pull Rod	Q195 Galvanized Zinc	7070T4
Traingle Rod Beam	Q195 Galvanized Zinc	2525T1.2
Pickets	Q195 Galvanized Zinc	6040T4
