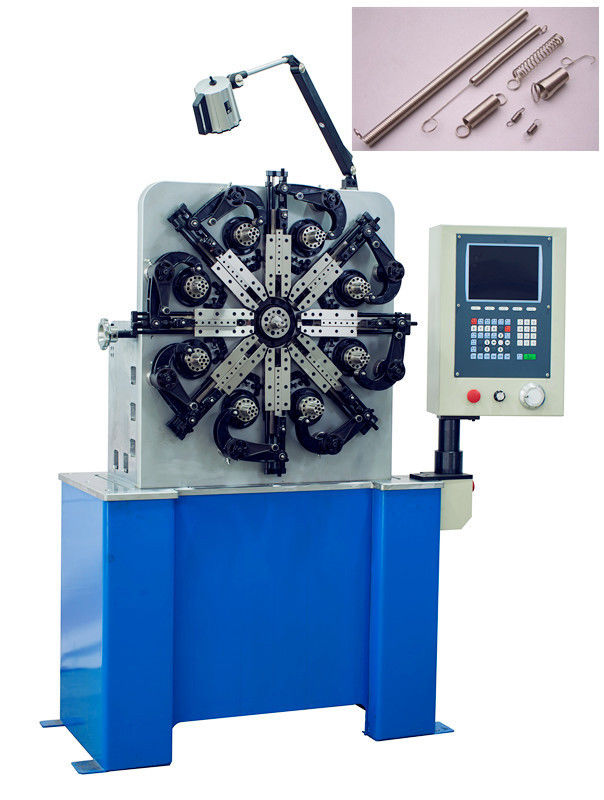

High precision computerised 3 axis CNC20 extension spring machine 0.30-2.30mm
XD-CNC20 universal spring forming machine
Details:
1. CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The
mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical
part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types:
extruding,punching and molding.
2. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire
feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller.
The controller system can save 1000 material numbers. Axis location, feeding data, production
speed and production output are displayed on the screen. The program data can be set and
changed easily.
4. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards
and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°,
also can control direction action or designated moves back and forth.
5. Optional accessories: Cutting tools, rolling axis, safety door.
Technical Parameter:
|
Model:
|
XD-CNC20
|
|
Wire diameter:
|
φ0.3～2.3 mm
|
|
Axes:
|
3 axes
|
|
Maximum Outside Diameter:
|
40mm
|
|
Maximum Feeding Length:
|
unlimited
|
|
Maximum Manufacture Speed:
|
100pcs/min
|
|
Feed Speed
|
200m/min
|
|
Memory Number:
|
1000PCS
|
|
Wire Feed Servo Motor:
|
2.7 KW
|
|
Cam Servo Motor:
|
2.7 KW
|
|
Quin Servo Motor
|
0.75 KW
|
|
Power AC:
|
220V 3P 50/60Hz
|
|
Dimensions (L*D*H):
|
1400X550X1600MM
|
|
Wooden Case Dimensions
|
1600x600x1700mm
|
|
Machine Weight:
|
900Kg
|
|
Gross Weights
|
950Kg
|
Our advantages:
1. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
2. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
3. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
